Pneumatic Cylinders
Twin Rod Cylinders

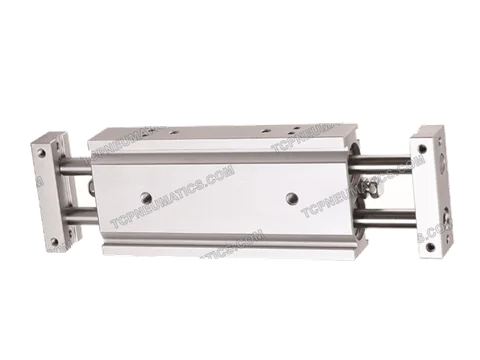

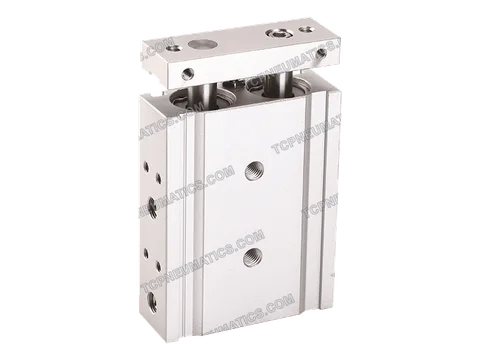

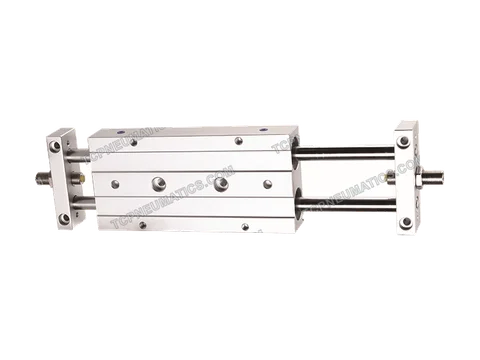

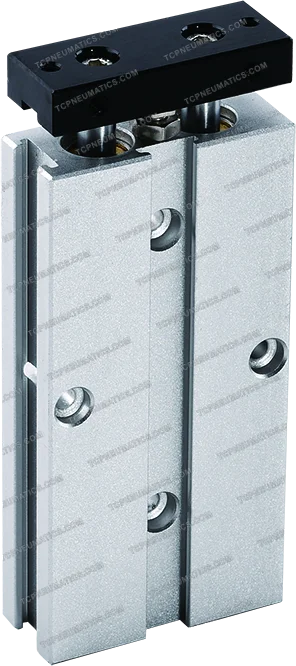

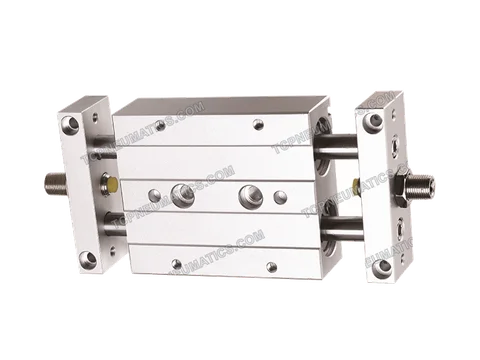

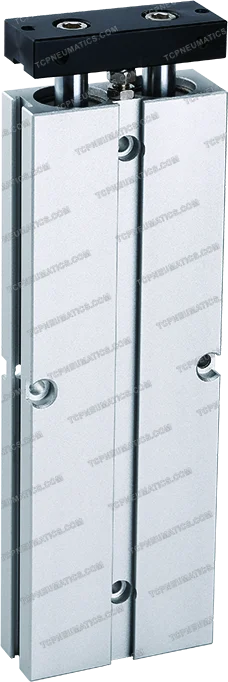

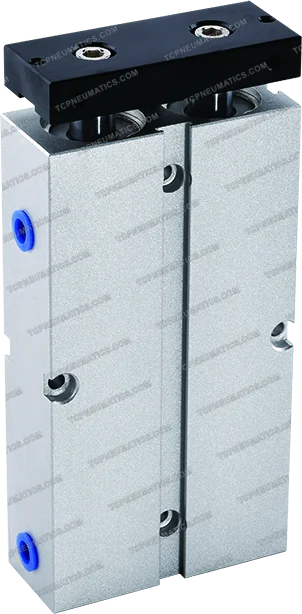

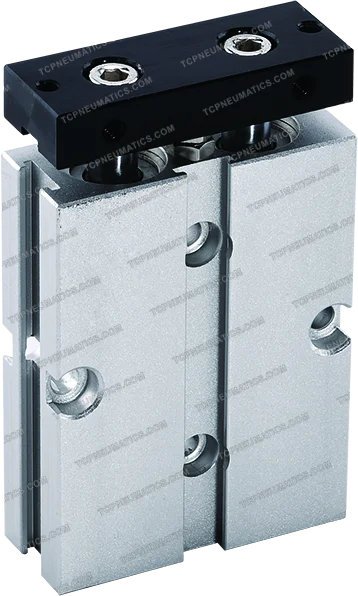

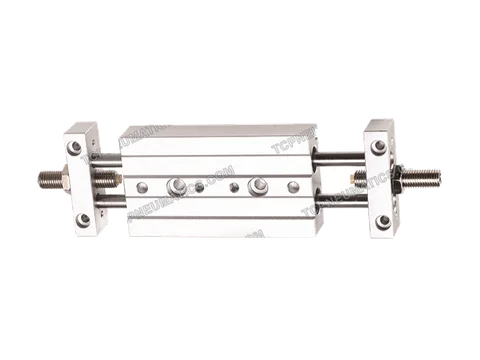

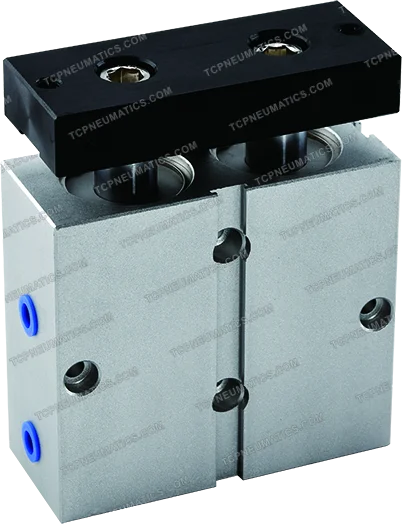

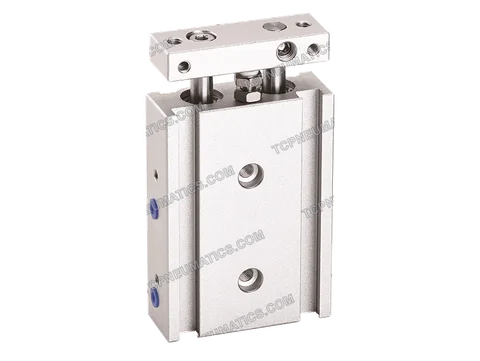

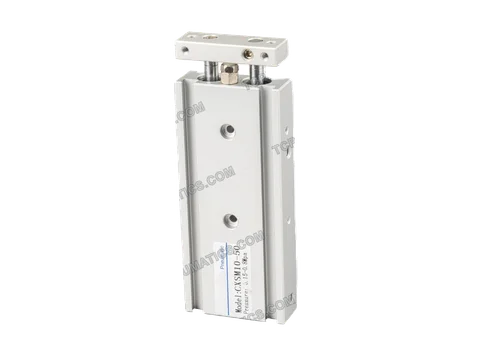

Operation Principle: Double-Acting, Twin Rod Cylinder (Symmetric design with two rods extending from each side of the piston)
Photograph labels are catalog references, not verified specifications for each model.
Enquire about this selectionFamily information
Catalog information describes product families. Dimensions, materials, pressure limits and compatibility must be confirmed for your selected model and operating conditions.
| Specification | Source value |
|---|---|
| Working Pressure | 1.5 to 8.5 bar |
| Size Range | Bore sizes from 8 mm to 100 mm. |
| Stroke Length | Customizable stroke length from 1 mm to 500 mm. |
| Body Material | Aluminum , Stainless steel |
| Piston Rod Material | Steel (Hard Chrome Plated) |
| Seal Material | NBR (Nitrile Rubber), FKM (Viton), PTFE (for high-temperature applications) |
| Working Fluid | Compressed air, filtered and lubricated or dry air |
| Max Speed | Up to 1 m/s (depending on bore size, stroke, and pressure) |
| Position Sensing | Available with integrated sensors for position detection (e.g., reed switches, inductive sensors) |
Full source description
Operation Principle: Double-Acting, Twin Rod Cylinder (Symmetric design with two rods extending from each side of the piston)
Working Pressure: 1.5 to 8.5 bar
Size Range: Bore sizes from 8 mm to 100 mm.
Stroke Length: Customizable stroke length from 1 mm to 500 mm.
Body Material: Aluminum , Stainless steel
Piston Rod Material: Steel (Hard Chrome Plated)
Seal Material: NBR (Nitrile Rubber), FKM (Viton), PTFE (for high-temperature applications)
Working Fluid: Compressed air, filtered and lubricated or dry air
Max Speed: Up to 1 m/s (depending on bore size, stroke, and pressure)
Position Sensing: Available with integrated sensors for position detection (e.g., reed switches, inductive sensors)
