Pneumatic Cylinders
Chinese Standard Cylinders SC
Operation Principle: A linear motion generated by compressed air pressure applied to a piston inside the cylinder tube. The piston moves back and forth to perform mechanical work

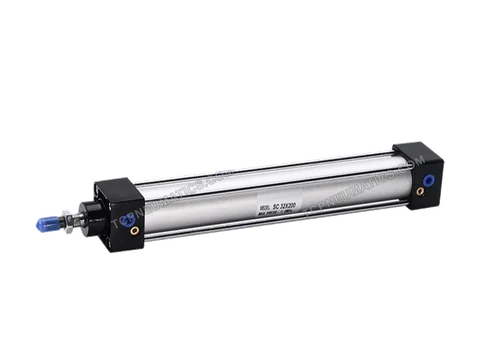

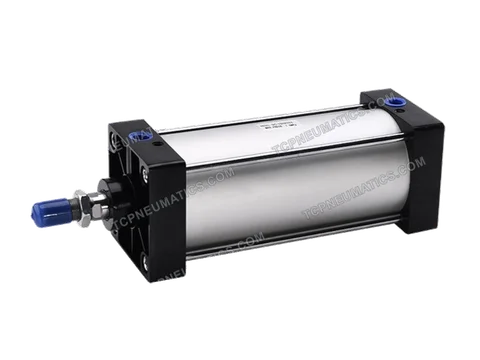

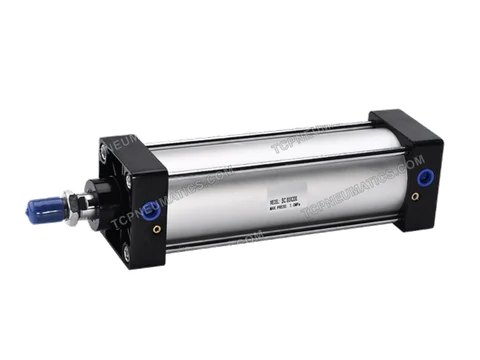

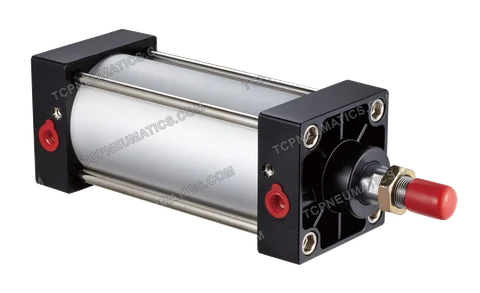

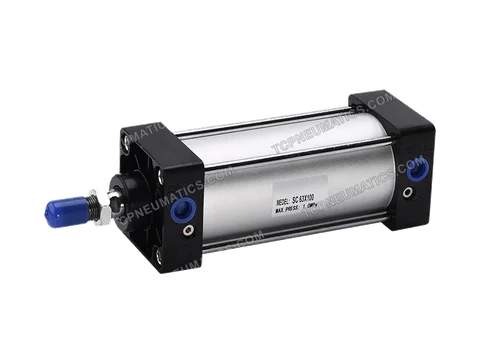

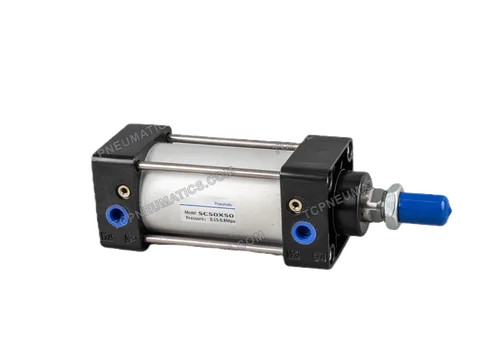

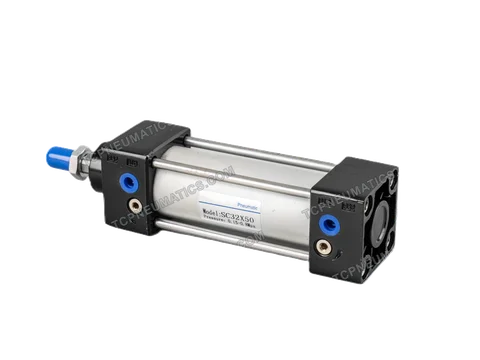

Photograph labels are catalog references, not verified specifications for each model.
Enquire about this selectionFamily information
Catalog information describes product families. Dimensions, materials, pressure limits and compatibility must be confirmed for your selected model and operating conditions.
| Specification | Source value |
|---|---|
| Working Pressure | 1.5 to 10 bar |
| Size Range | From 32 mm to 320 mm (Bore Diameter) |
| Stroke Length | from 10 mm to over 3000 mm, depending on the model |
| Body Material | Aluminum (ISO 6431), Steel (ISO 15552) |
| Piston Rod Material | Steel (Hard Chrome Plated) |
| Seal Material | NBR (Nitrile Rubber), FKM (Viton), PTFE (for high-temperature applications) |
| Working Fluid | Compressed air, filtered and lubricated or dry air |
| Max Speed | Up to 1 m/s (depending on bore size, stroke, and pressure) |
| End-of-Stroke Cushioning | Adjustable, to prevent damage from impact at end of travel. |
| Stroke Adjustment | Available stroke adjustment based on client requirements |
| Position Sensing | Available with integrated sensors for position detection (e.g., reed switches, inductive sensors) |
Full source description
Operation Principle: A linear motion generated by compressed air pressure applied to a piston inside the cylinder tube. The piston moves back and forth to perform mechanical work
Working Pressure: 1.5 to 10 bar
Size Range: From 32 mm to 320 mm (Bore Diameter)
Stroke Length: from 10 mm to over 3000 mm, depending on the model
Body Material: Aluminum (ISO 6431), Steel (ISO 15552)
Piston Rod Material: Steel (Hard Chrome Plated)
Seal Material: NBR (Nitrile Rubber), FKM (Viton), PTFE (for high-temperature applications)
Working Fluid: Compressed air, filtered and lubricated or dry air
Max Speed: Up to 1 m/s (depending on bore size, stroke, and pressure)
End-of-Stroke Cushioning: Adjustable, to prevent damage from impact at end of travel.
Stroke Adjustment: Available stroke adjustment based on client requirements
Position Sensing: Available with integrated sensors for position detection (e.g., reed switches, inductive sensors)
