Pneumatic Cylinders

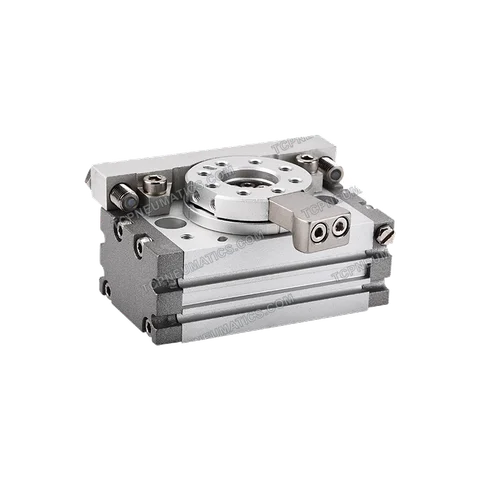

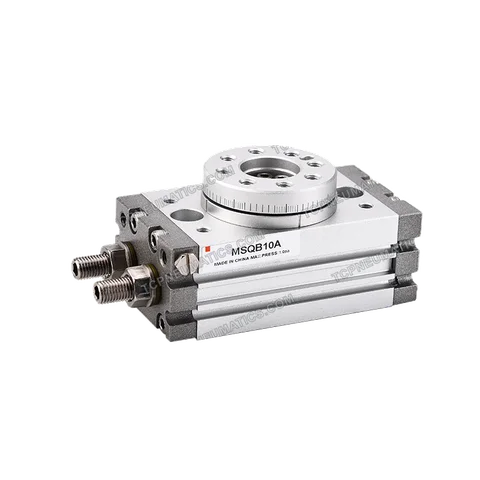

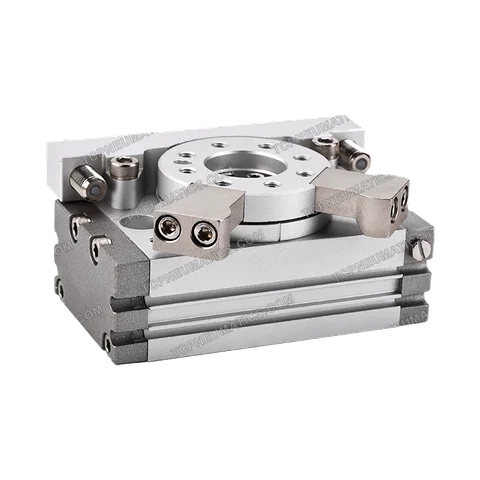

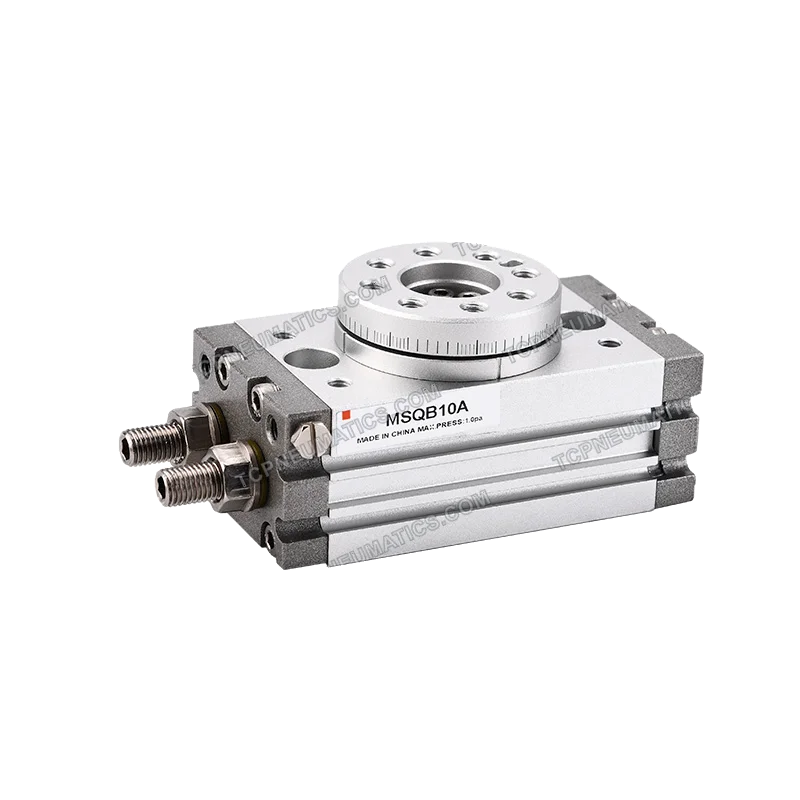

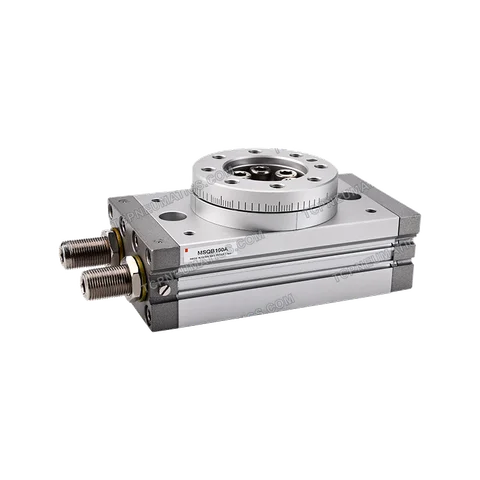

Rotary Cylinder
Operation Principle: The Rotary Pneumatic Cylinder operates by converting the linear force of compressed air into rotational motion. It uses a piston inside the cylinder that is connected to a shaft. When compressed air enters the cylinder, it moves the piston, which rotates the shaft to produce rotary motion. The cylinder can rotate through a specified range of angles, typically 90°, 180°, or 270°
Photograph labels are catalog references, not verified specifications for each model.
Enquire about this selectionFamily information
Catalog information describes product families. Dimensions, materials, pressure limits and compatibility must be confirmed for your selected model and operating conditions.
| Specification | Source value |
|---|---|
| Working Pressure | 1.5 to 8.5 bar |
| Size Range | Bore sizes range from 10 mm to 200 mm, with adjustable angle screw options. Available with various rotational angle range |
| Body Material | Aluminum , Stainless steel |
| Seal Material | NBR (Nitrile Rubber), FKM (Viton), PTFE (for high-temperature applications) |
| Working Fluid | Compressed air, filtered and lubricated |
| Position Sensing | Available with integrated sensors for position detection (e.g., reed switches, inductive sensors) |
Full source description
Operation Principle: The Rotary Pneumatic Cylinder operates by converting the linear force of compressed air into rotational motion. It uses a piston inside the cylinder that is connected to a shaft. When compressed air enters the cylinder, it moves the piston, which rotates the shaft to produce rotary motion. The cylinder can rotate through a specified range of angles, typically 90°, 180°, or 270°
Working Pressure: 1.5 to 8.5 bar
Size Range: Bore sizes range from 10 mm to 200 mm, with adjustable angle screw options. Available with various rotational angle range
Body Material: Aluminum , Stainless steel
Seal Material: NBR (Nitrile Rubber), FKM (Viton), PTFE (for high-temperature applications)
Working Fluid: Compressed air, filtered and lubricated
Position Sensing: Available with integrated sensors for position detection (e.g., reed switches, inductive sensors)
