Pneumatic Cylinders

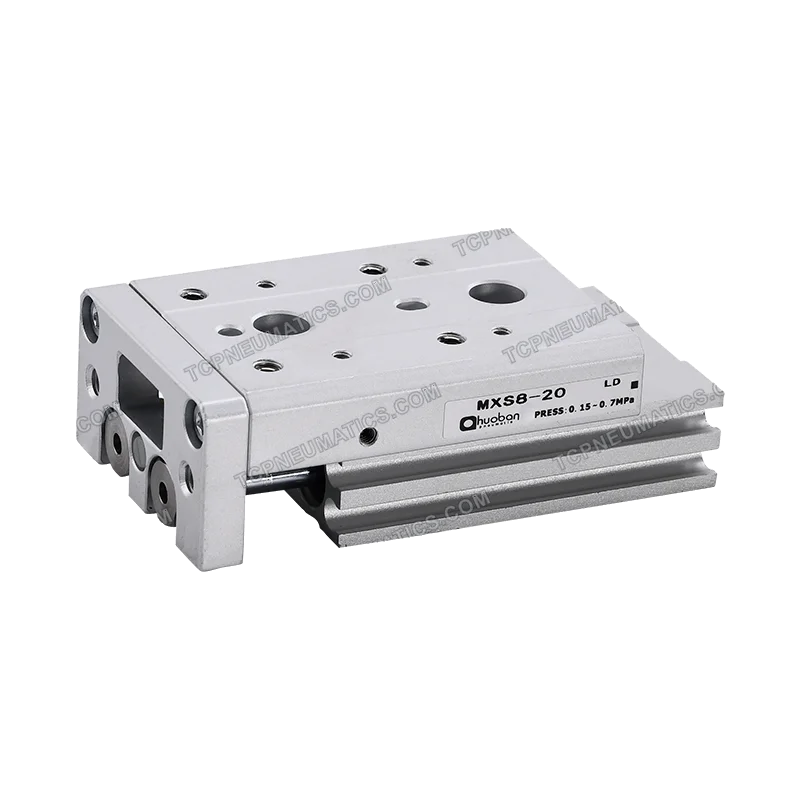

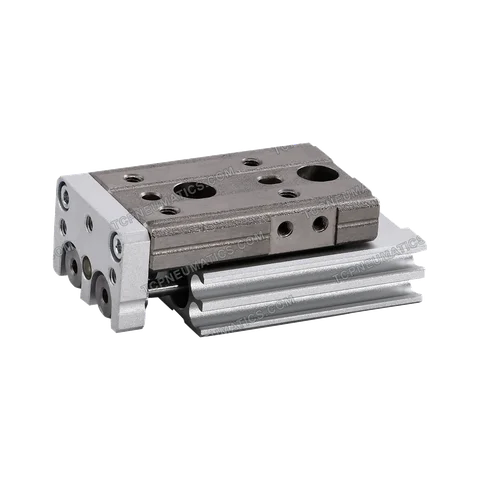

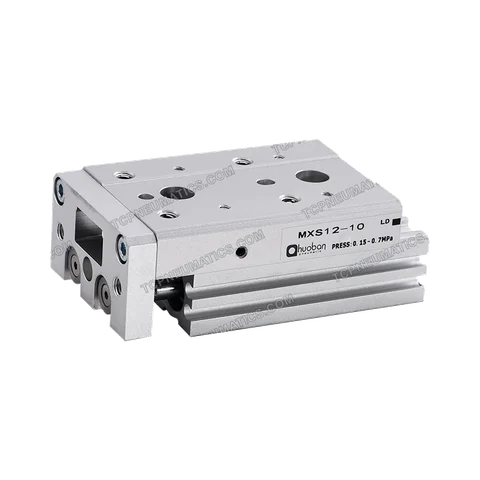

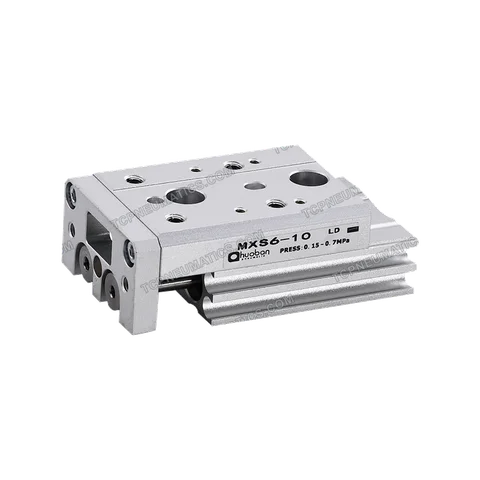

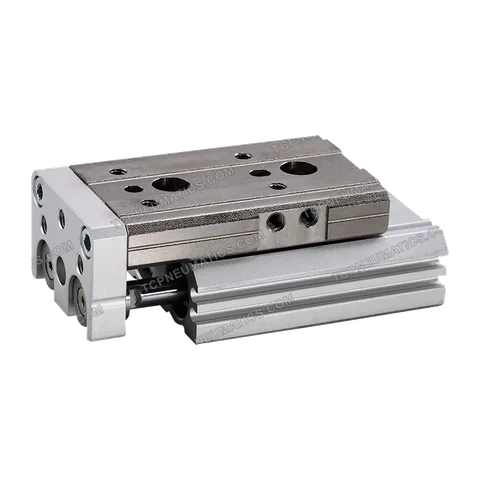

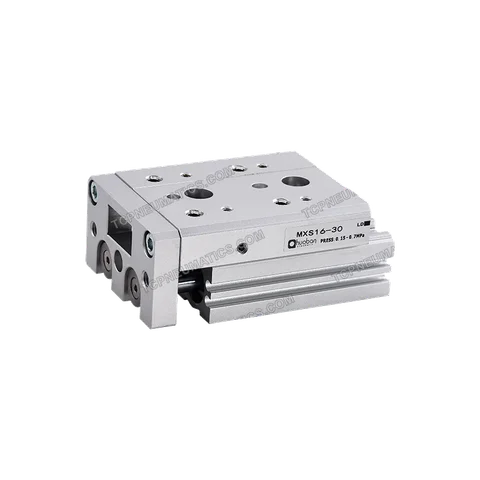

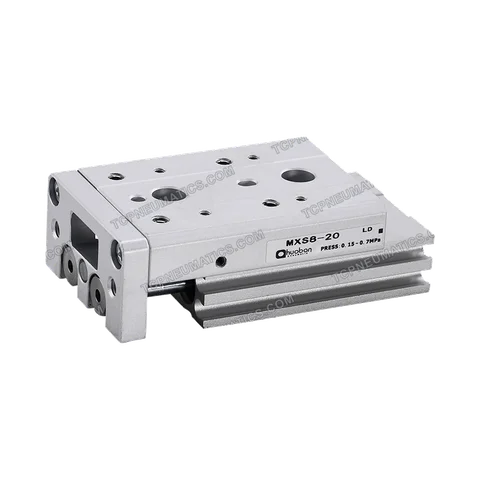

MX Table Cylinder
Function: The MX Table Cylinder operates by utilizing compressed air to move a piston inside the cylinder. The piston drives a table or platform back and forth, controlled by alternating air pressure. This allows for precise, linear motion of the table or platform, often used in pick-and-place or indexing applications.
Photograph labels are catalog references, not verified specifications for each model.
Enquire about this selectionFamily information
Catalog information describes product families. Dimensions, materials, pressure limits and compatibility must be confirmed for your selected model and operating conditions.
| Specification | Source value |
|---|---|
| Working Pressure | 2 to 10 bar |
| Size Range | Bore sizes range from 6 mm to 50 mm. |
| Body Material | Aluminum |
| Working Fluid | Compressed air, filtered and lubricated |
Full source description
Function: The MX Table Cylinder operates by utilizing compressed air to move a piston inside the cylinder. The piston drives a table or platform back and forth, controlled by alternating air pressure. This allows for precise, linear motion of the table or platform, often used in pick-and-place or indexing applications.
Working Pressure: 2 to 10 bar
Size Range: Bore sizes range from 6 mm to 50 mm.
Body Material: Aluminum
Working Fluid: Compressed air, filtered and lubricated
