Pneumatic Cylinders

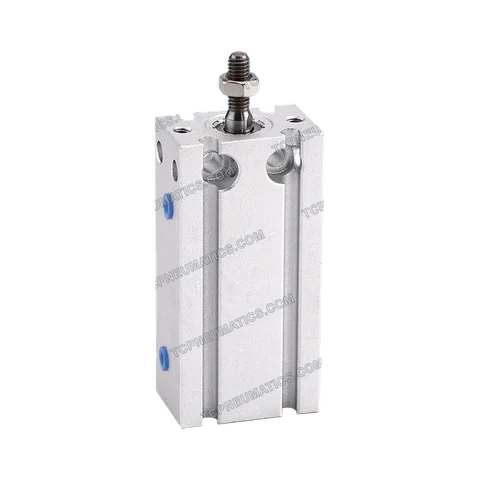

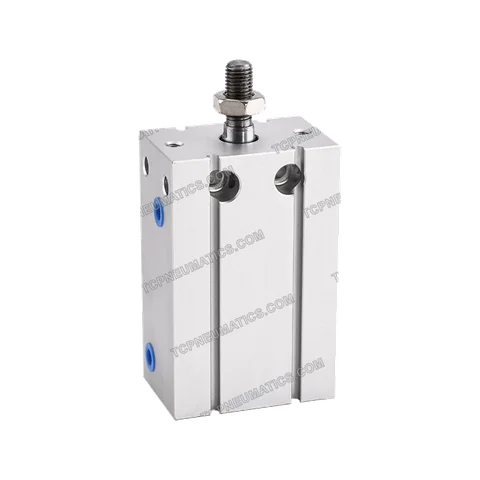

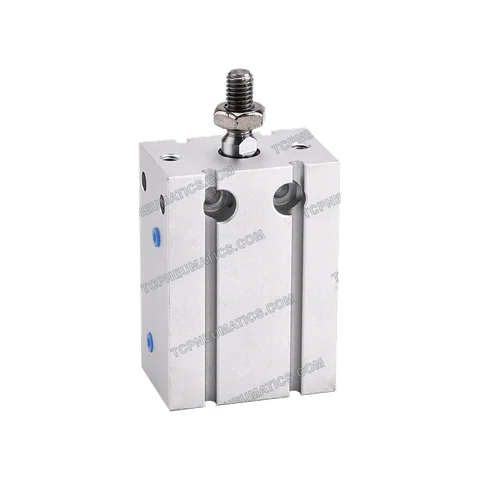

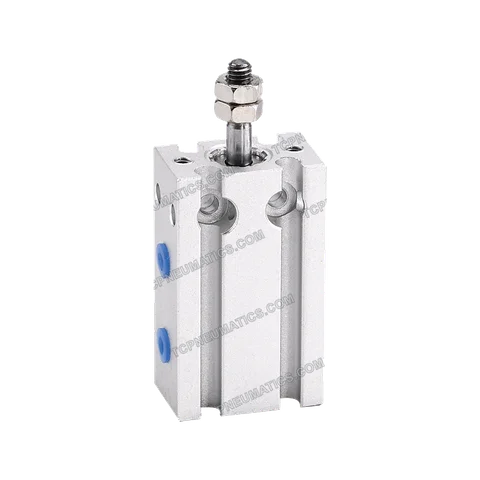

CDU Cylinders
Function: The Pneumatic Cylinder (CU Series) is used to generate linear motion for various mechanical operations such as pushing, pulling, lifting, or positioning.
Photograph labels are catalog references, not verified specifications for each model.
Enquire about this selectionFamily information
Catalog information describes product families. Dimensions, materials, pressure limits and compatibility must be confirmed for your selected model and operating conditions.
| Specification | Source value |
|---|---|
| Working Pressure | 2 to 10 bar |
| Size Range | Bore sizes range from 16 mm to 80 mm. |
| Body Material | Aluminum |
| Working Fluid | Compressed air, filtered and lubricated |
Full source description
Function: The Pneumatic Cylinder (CU Series) is used to generate linear motion for various mechanical operations such as pushing, pulling, lifting, or positioning.
Working Pressure: 2 to 10 bar
Size Range: Bore sizes range from 16 mm to 80 mm.
Body Material: Aluminum
Working Fluid: Compressed air, filtered and lubricated
