Pneumatic Directional Control Valves

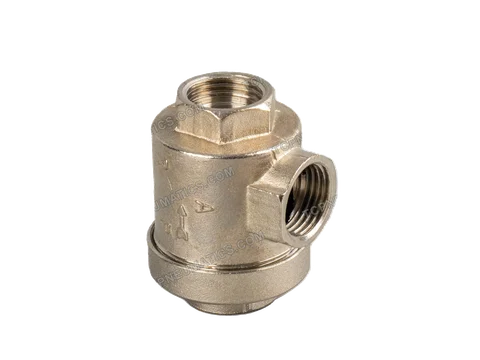

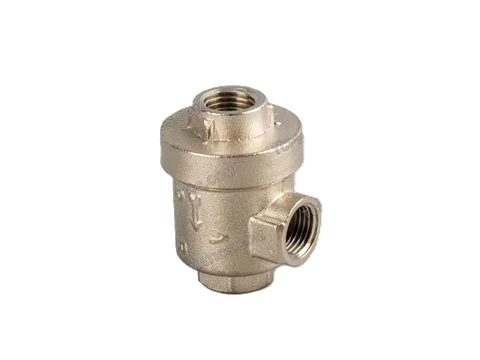

Quick Exhaust Valves
Rapidly exhausts air from a pneumatic system to increase the speed of actuator return stroke by venting air quickly.
Photograph labels are catalog references, not verified specifications for each model.
Enquire about this selectionFamily information
Catalog information describes product families. Dimensions, materials, pressure limits and compatibility must be confirmed for your selected model and operating conditions.
| Specification | Source value |
|---|---|
| Available threads | ¼”, 3/8 and ½”” |
| Working Pressure | 0.2 - 10 bar |
| Operation Temperature | 5~60 C |
Full source description
Rapidly exhausts air from a pneumatic system to increase the speed of actuator return stroke by venting air quickly.
Available threads : ¼”, 3/8 and ½””
Working Pressure : 0.2 - 10 bar
Operation Temperature : 5~60 C
