Pneumatic Directional Control Valves

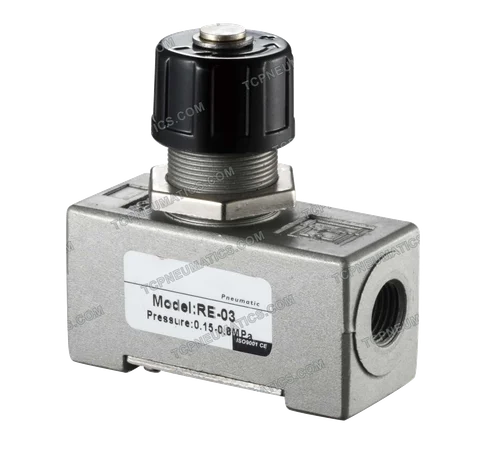

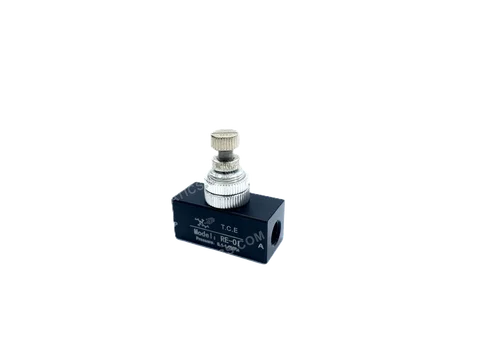

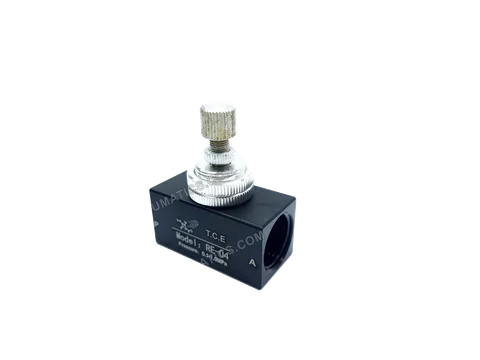

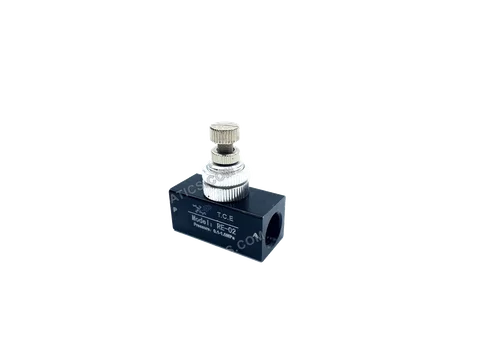

One-Way Throttle Flow Control Valve (RE Series)
The valve uses a throttling screw or needle to control the flow rate in one direction. The free-flow direction allows for quick response when the actuator moves in the opposite direction.
Photograph labels are catalog references, not verified specifications for each model.
Enquire about this selectionFamily information
Catalog information describes product families. Dimensions, materials, pressure limits and compatibility must be confirmed for your selected model and operating conditions.
| Specification | Source value |
|---|---|
| Available threads | 1/8 , ¼”, 3/8 and ½” |
| Working Fluid | 40 Micron Filtered Air |
| Working Pressure | 1.5 - 9 bar |
| Operation Temperature | 5~60 C |
Full source description
The valve uses a throttling screw or needle to control the flow rate in one direction. The free-flow direction allows for quick response when the actuator moves in the opposite direction.
Available threads : 1/8 , ¼”, 3/8 and ½”
Working Fluid : 40 Micron Filtered Air
Working Pressure : 1.5 - 9 bar
Operation Temperature : 5~60 C
