Pneumatic Directional Control Valves

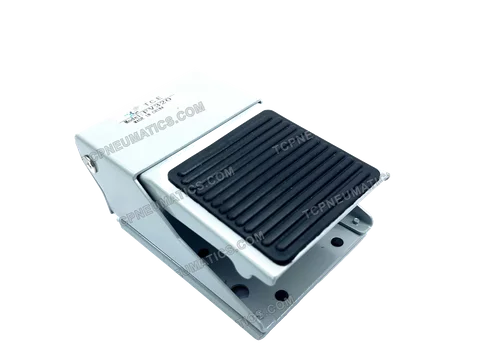

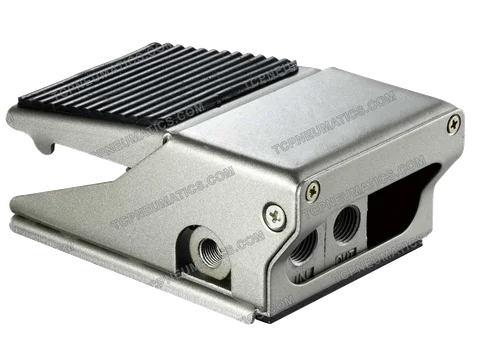

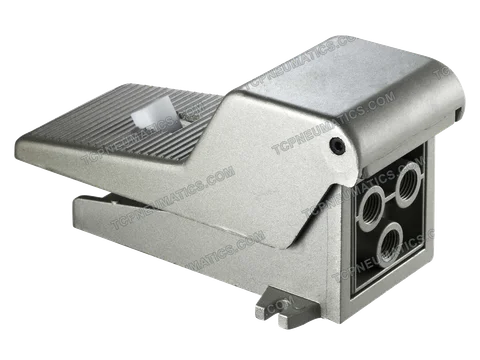

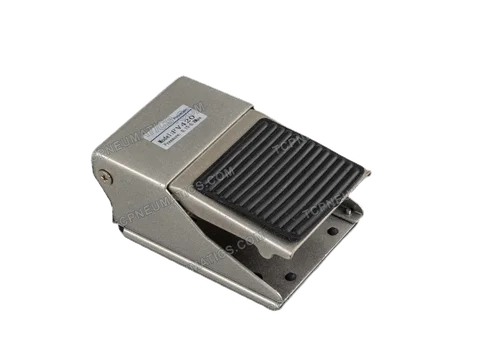

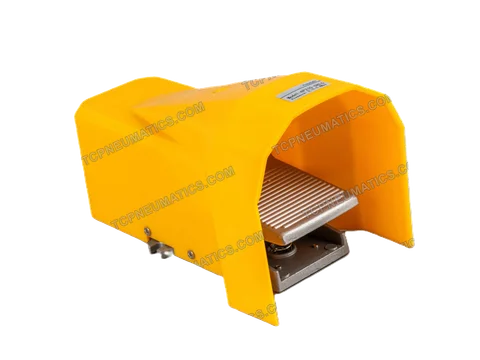

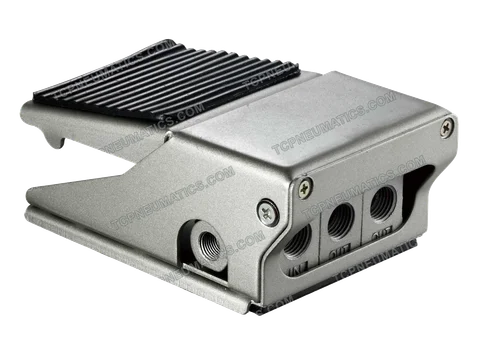

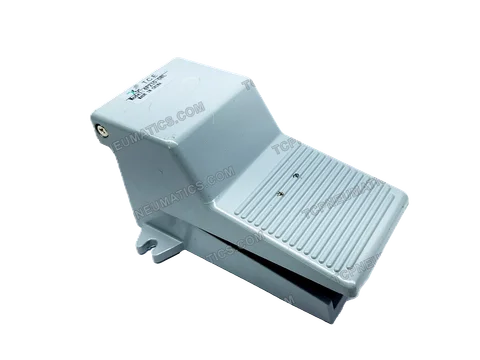

Foot Valve
Operates by foot actuation to control the flow of compressed air in a pneumatic system.
Photograph labels are catalog references, not verified specifications for each model.
Enquire about this selectionFamily information
Catalog information describes product families. Dimensions, materials, pressure limits and compatibility must be confirmed for your selected model and operating conditions.
| Specification | Source value |
|---|---|
| Positions | - 3/2 N.C and 5/2 |
| Available threads | ¼” |
| Working Fluid | 40 Micron Filtered Air |
| Working Pressure | 1.5 - 9 bar |
| Operation Temperature | 5~60 C |
Full source description
Operates by foot actuation to control the flow of compressed air in a pneumatic system.
Positions: - 3/2 N.C and 5/2
Available threads : ¼”
Working Fluid : 40 Micron Filtered Air
Working Pressure : 1.5 - 9 bar
Operation Temperature : 5~60 C
