Pneumatic Directional Control Valves

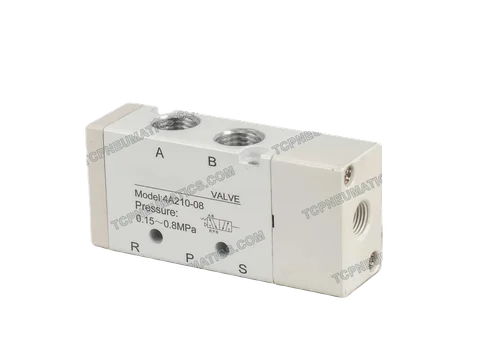

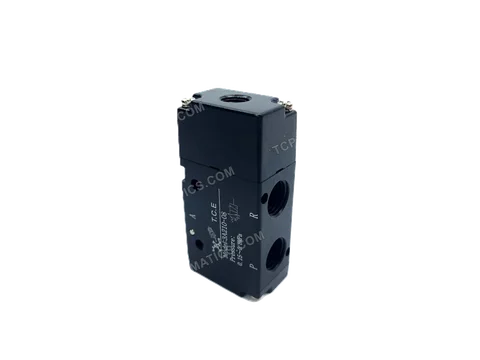

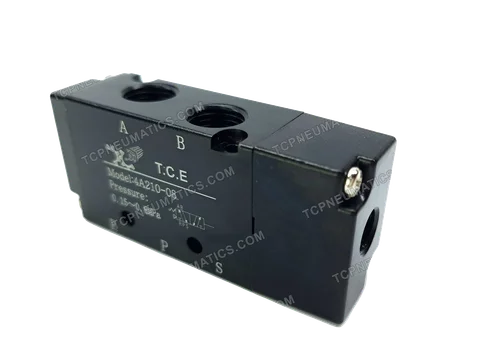

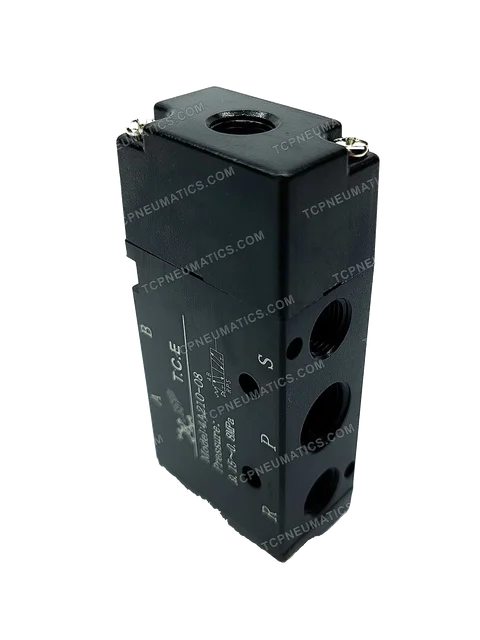

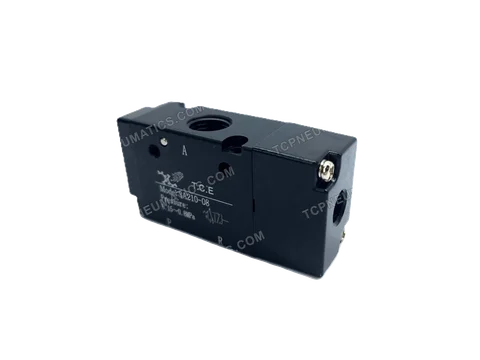

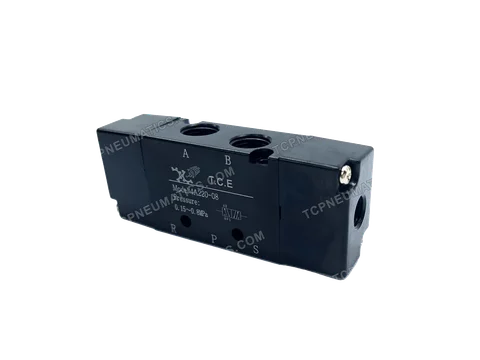

Air Pilot Operated Pneumatic Valve
A small air signal (pilot) controls the operation of the main valve
Photograph labels are catalog references, not verified specifications for each model.
Enquire about this selectionFamily information
Catalog information describes product families. Dimensions, materials, pressure limits and compatibility must be confirmed for your selected model and operating conditions.
| Specification | Source value |
|---|---|
| Positions | - 3/2 Valve (Single Actuation) |
| Available threads | 1/8”, ¼”, 3/8” and ½” |
| Working Fluid | 40 Micron Filtered Air |
| Working Pressure | 1.5 - 9 bar |
| Operation Temperature | 5~60 C |
Full source description
A small air signal (pilot) controls the operation of the main valve
Positions: - 3/2 Valve (Single Actuation)
- 5/2 Valve (Double Actuation)
- 5/3 Valve (Centering spring)
Available threads : 1/8”, ¼”, 3/8” and ½”
Working Fluid : 40 Micron Filtered Air
Working Pressure : 1.5 - 9 bar
Operation Temperature : 5~60 C
